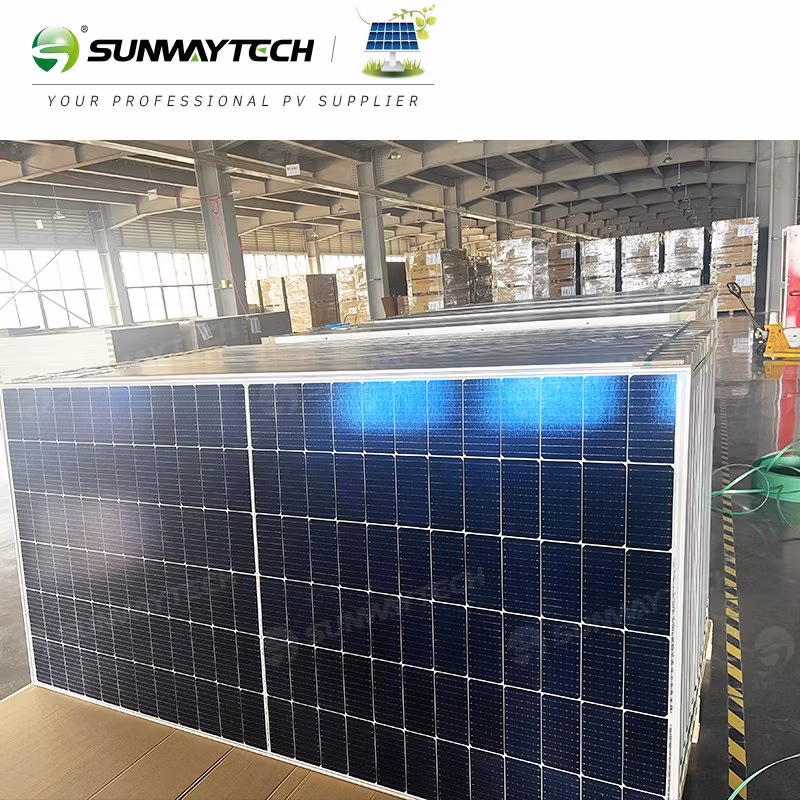

- Our Factory
- Product Packaging
- Application
- Certifications
Basic Info.

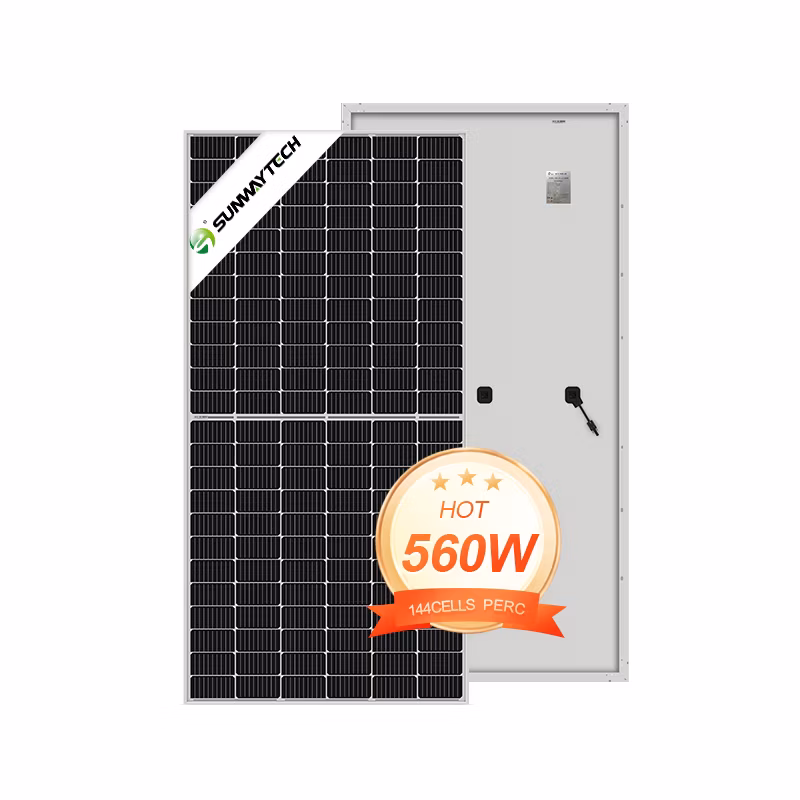

Model NO.
SW560M-144
Application
Industrial
Condition
New
Certification
CE, TUV
Material
Monocrystalline Silicon
Junction Box
IP68, with Bypass Diodes
Glass Thickness
3.2mm Low Iron Tempered Glass
No.of Cells and Connections
144(6*24)
Maximum Series Fuse
20A
Positive Power Tolerance
0~ +5W
Application Class
Class a
Cable Cross Section Length (mm)
300
Transport Package
Plywood Package
Specification
550W/560W/570W/580W
Trademark
SUNWAY
Origin
Hefei China
Production Capacity
1000000 Watt/Watts Per Week
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
3.000kg
Product Description
| Electrical Characteristics(STC) | ||||
| Class/Eva/Cell/Eva/Backsheet | ||||
| Maximum Power (Pmax) | 550W | 560W | 570W | 580W |
| Maximum Power Voltage (Vmp) | 41.6V | 42V | 42.4V | 42.8V |
| Maximum Power Current (Imp) | 13.29A | 13.35A | 13.47A | 13.59A |
| Open-circuit Voltage (Voc) | 49.8V | 50.2V | 50.6V | 51V |
| Short-circuit Current (Isc) | 14.00A | 14.11A | 14.23A | 14.35A |
| Module Efficiency (%) | 0.215 | 0.219 | 0.223 | 0.227 |
| Power Tolerance | 0~+5W | |||
| Temperature Coeffcient of Isc | +0.05%/ºC | |||
| Temperature Coeffcient of Voc | -0.29%/ºC | |||
| Temperature Coeffcient of Pmax | -0.37%/ºC | |||
